This instruction is with Dynamic Ip configuration (DHCP).
If you want to use static change accordingly in Network/Host.
All modifications are based on a Factory-Reset.
First Login to Mediatrix with standard User Name „public“ and no password.
Warning: Failure to change the default password exposes the device to unauthorized access, data breaches and fraud, which can compromise the security of the entire network and system. It also increases the risk of service interruption and makes it difficult to monitor and prevent security breaches.
Check firmware and update it to the latest according to Myportal.

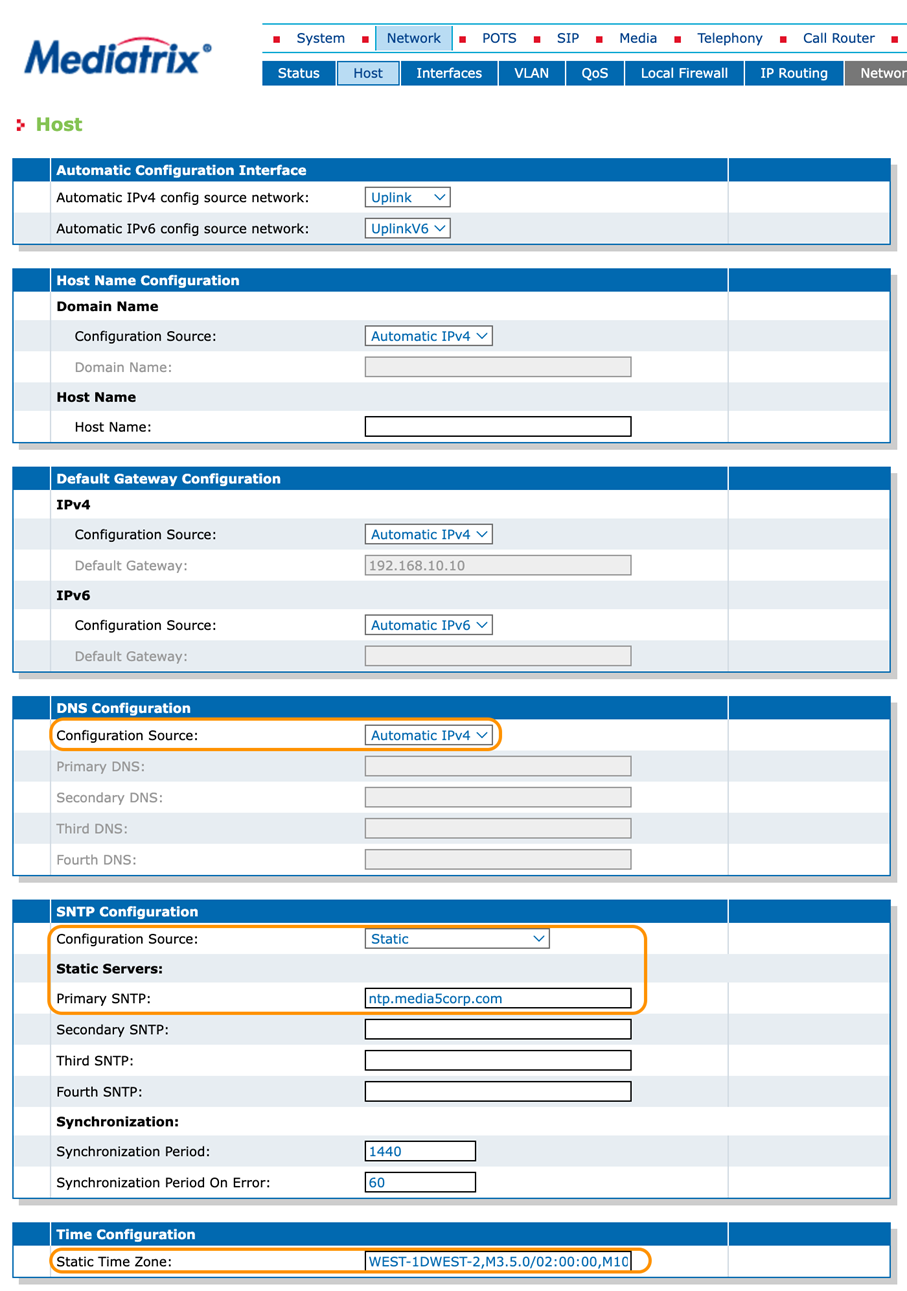

Network/Host
DNS Configuration : „Automatic IPv4“
SNTP Configuration/Configuration Source : „Static“
Time Configuration/Static Time Zone : „WEST-1DWEST-2,M3.5.0/02:00:00,M10.5.0/03:00:00“ for CEST

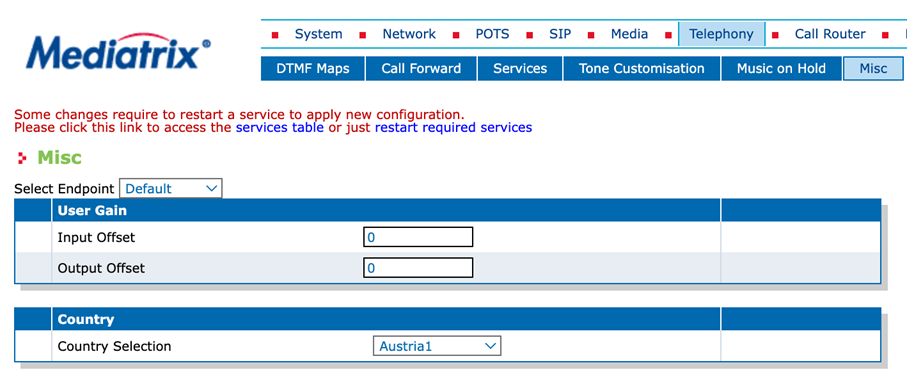

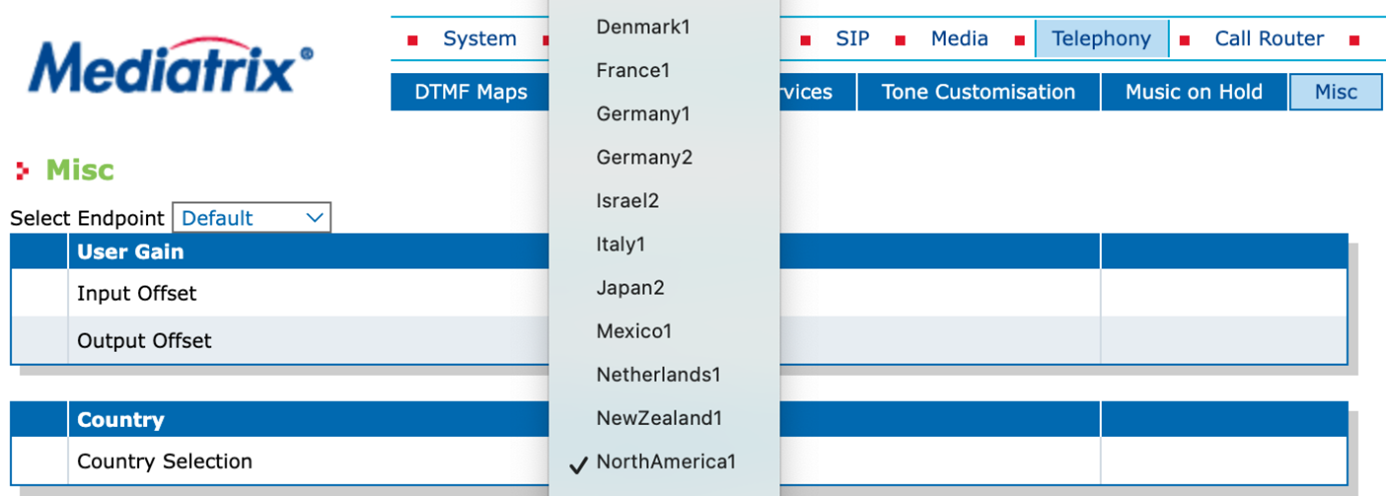

Telephony/Misc
Country Selection : Set correct Country
Klick „restart required sevices“ now or do it later (every time you see this).
Rainbow-Hub Admin Portal

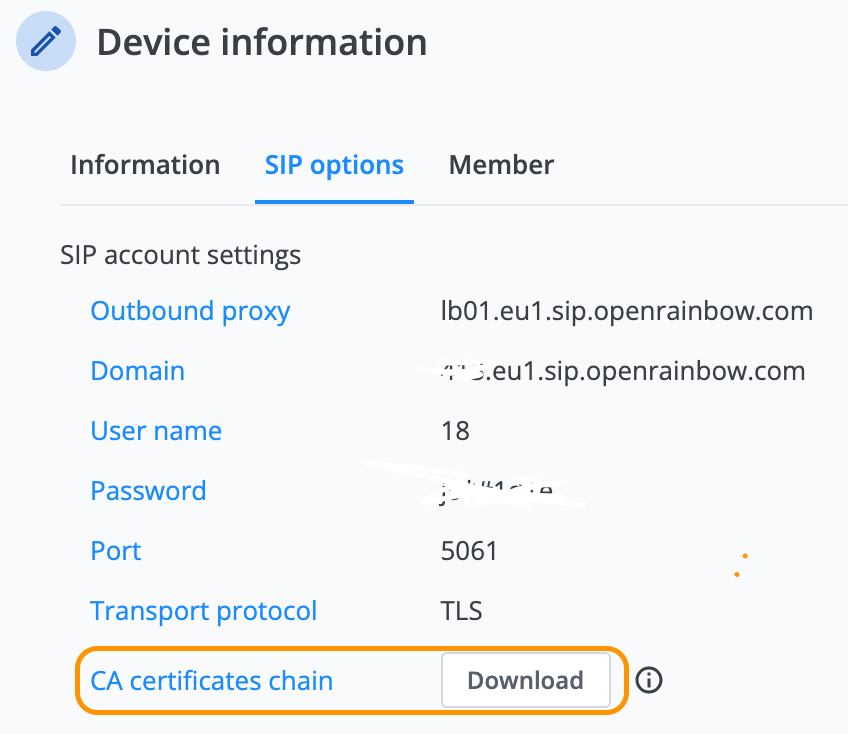

Download the Certificate of the Generic SIP Device from Rainbow-Hub (consult your Business Partner)
Administration/Communication/Devices/Generic SIP Device/Device Information/SIP options

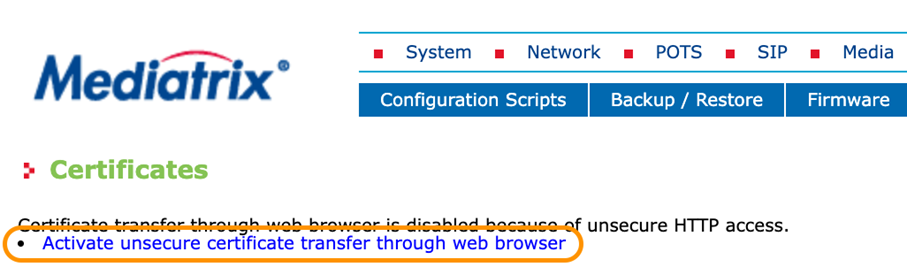

Click on „Activate unsecure certificate transfer through web browser“

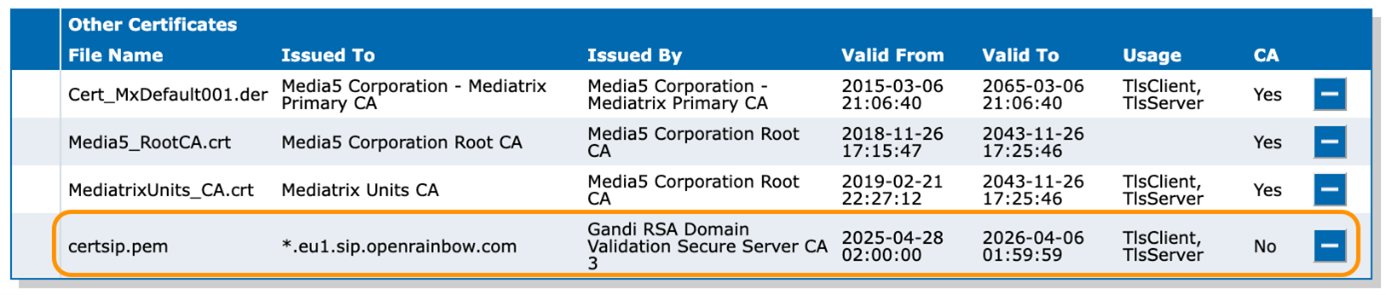

Then it should be in the list of „Other certificates“:

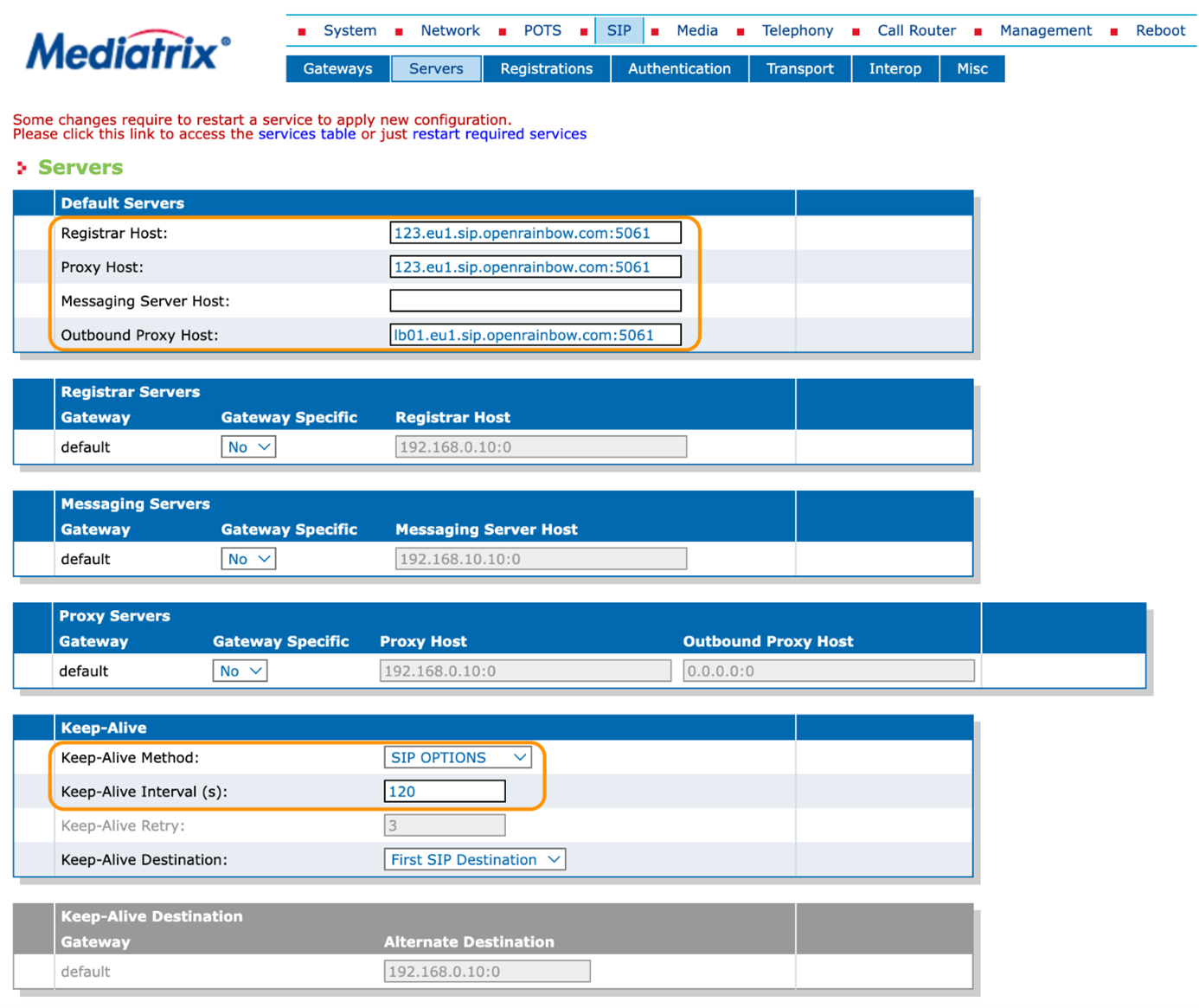

SIP/Servers
Default Servers:
Enter Registrar and Proxy Host according to Rainbow-Hub (e.g. 123.eu1.sip.openrainbow.com:5061)
You find it on Rainbow-Hub under Domain in Administration/Communication/Devices/Generic SIP Device/Device Information/SIP options
Delete Messaging Server Host
Enter Outbound Proxy Host: lb01.eu1.sip.openrainbow.com:5061
Keep-Alive:
Keep-Alive Method : SIP OPTIONS
Keep-Alive Interval (s) : 120

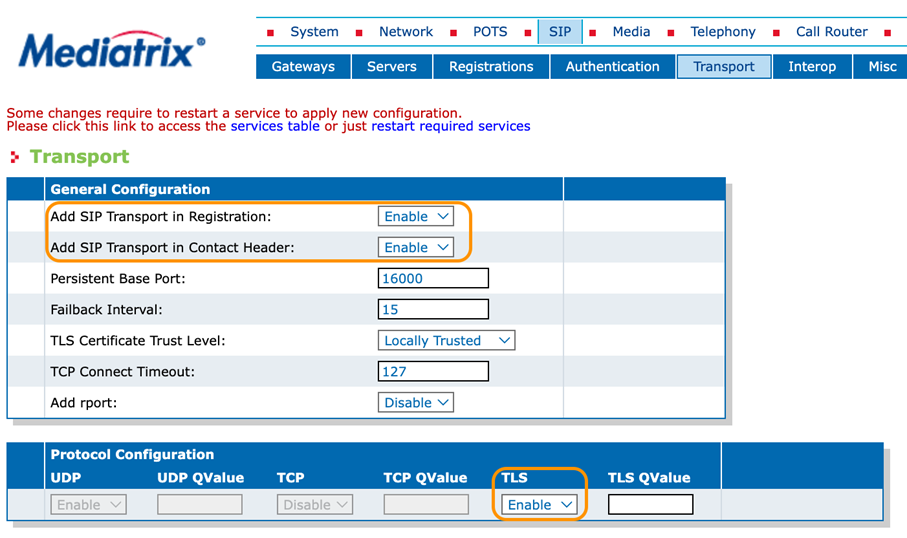

SIP/Transport
General Configuration : Add SIP Transport in Registration AND in Contact Header „Enable
Protocol Configuration: TLS „Enable“

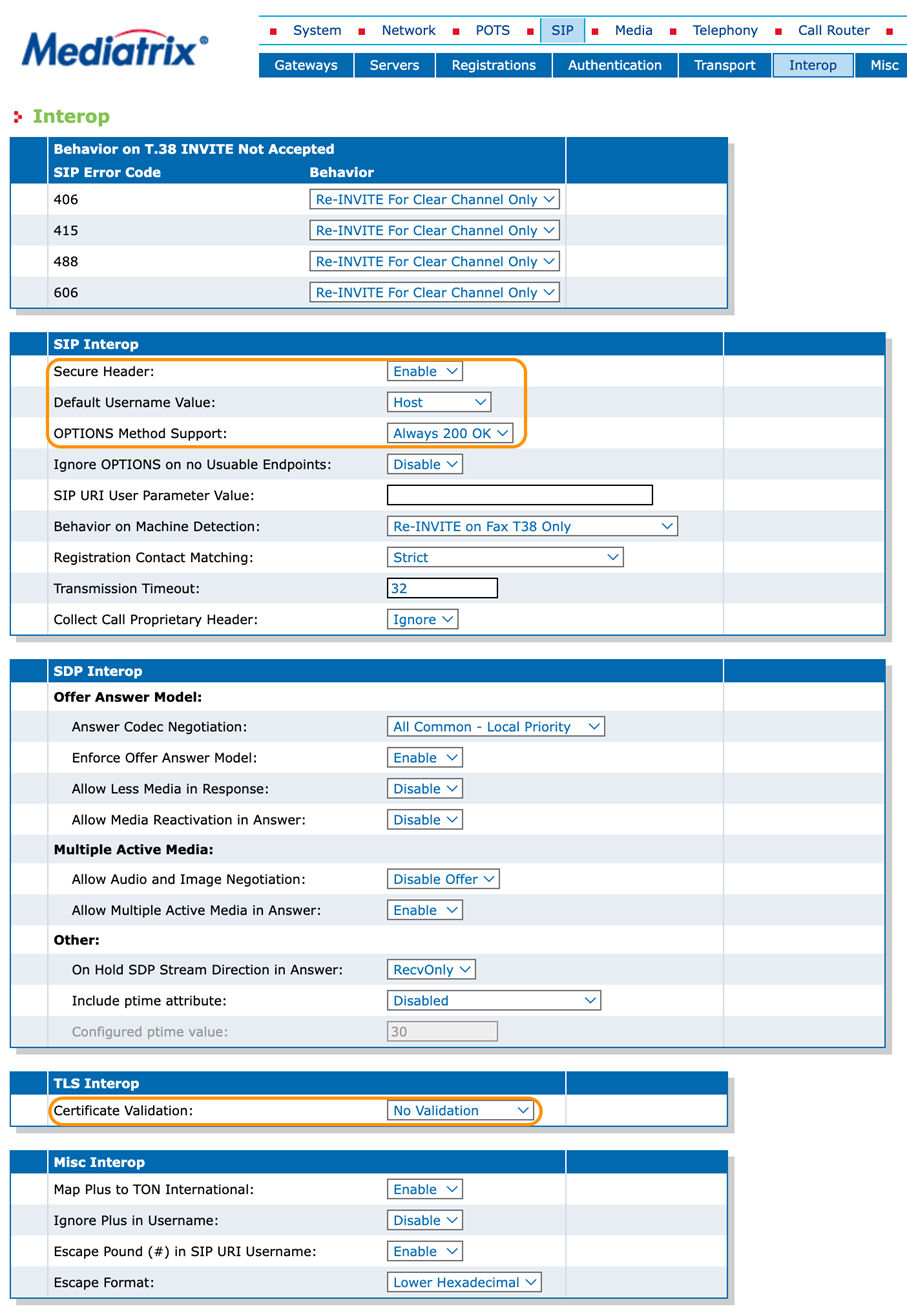

SIP/Interop
SIP Interop
- Secure Header : „Enable“
- Default Username Value : „Host“
OPTIONS Method Support : „Always 200 OK“
TLS Interop :
- Certificate Validation : „No validation“

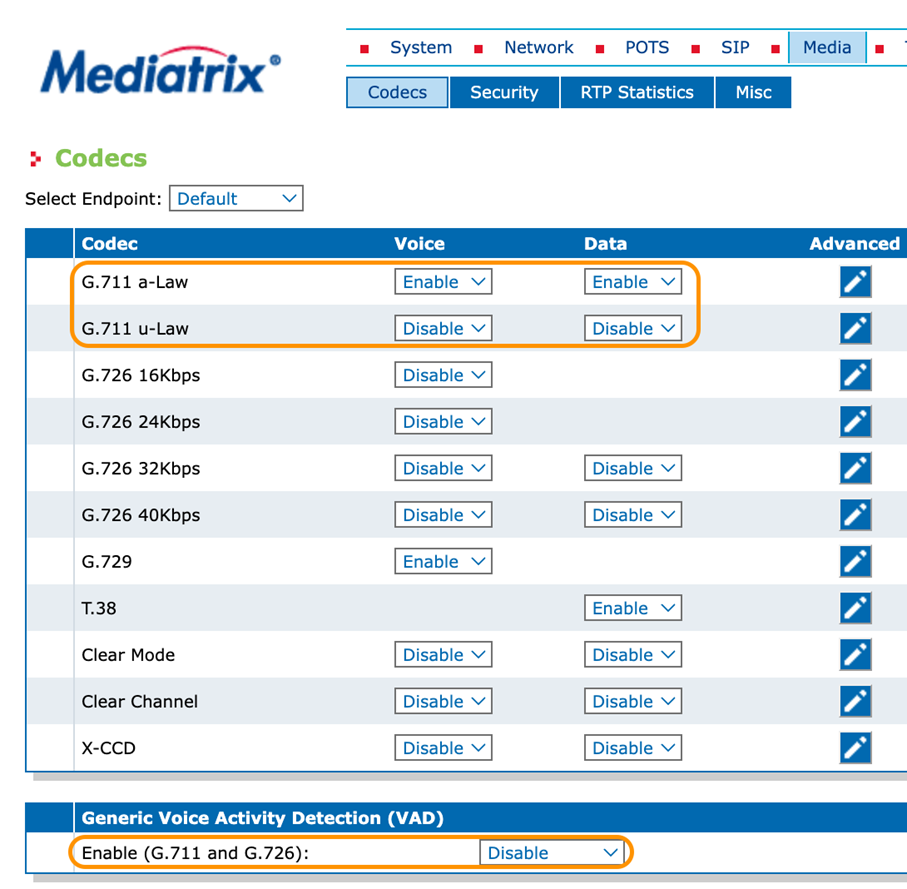

Media /Codecs
Codec : Disable u-Law (or a-Law according to Country regulation).
Generic Voice Activity Detectionm (VAD): „Disable“

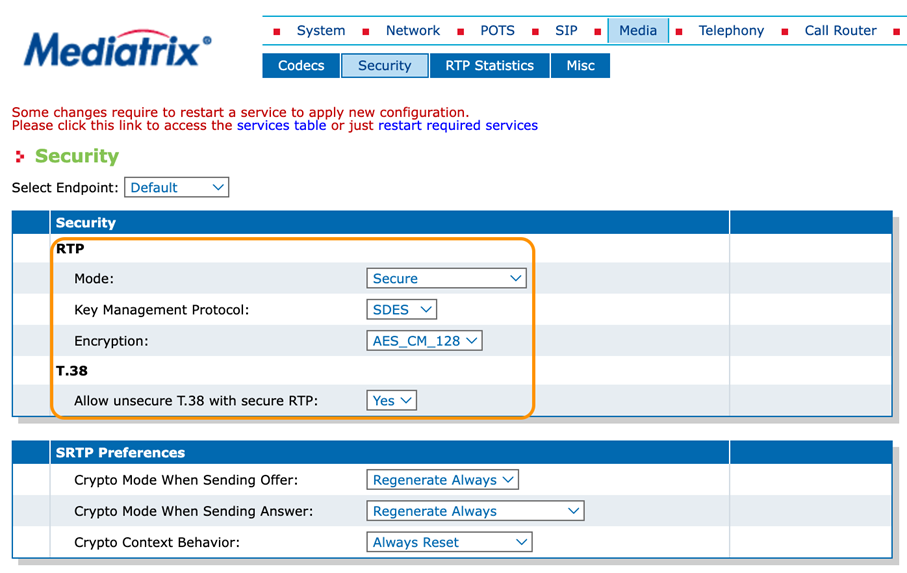

Media, Security
Security:
- RTP: Mode : „Secure“
- Key Management Protocol : „SDES“
- Encryption : „AES_CM_128“
- T.38: Allow unsecure T.38 with secure RTP: „Yes“

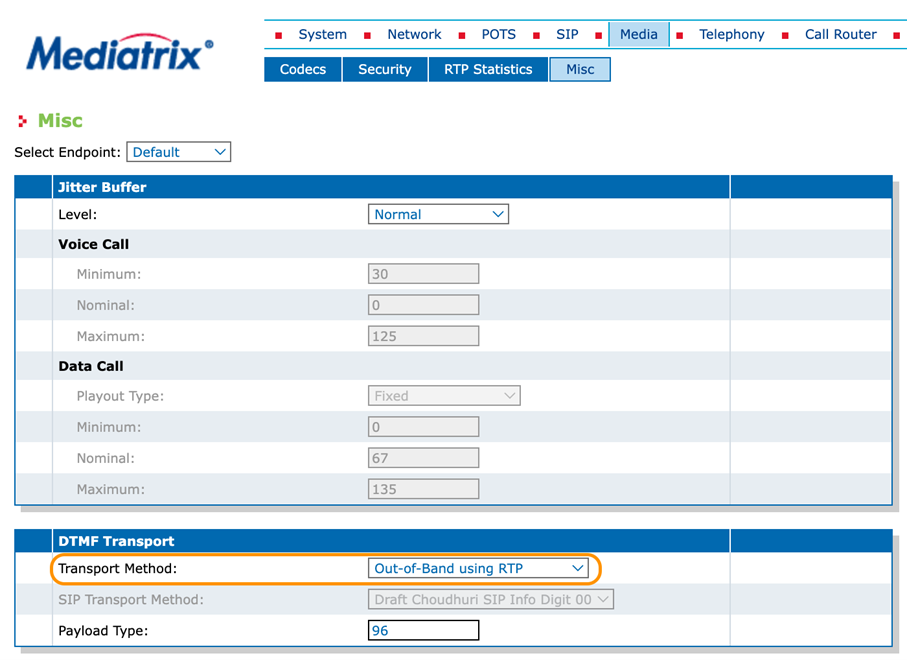

Média / Misc
DTMF Transport : Transport Method „Out-of Band using RTP“

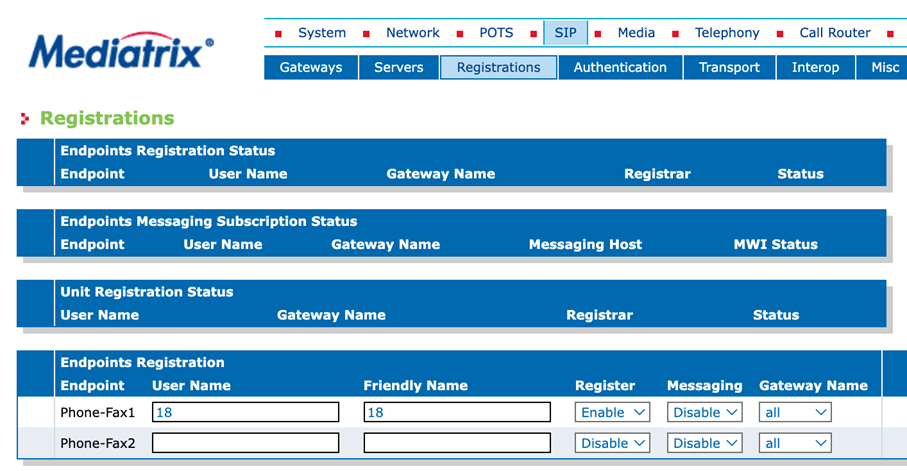

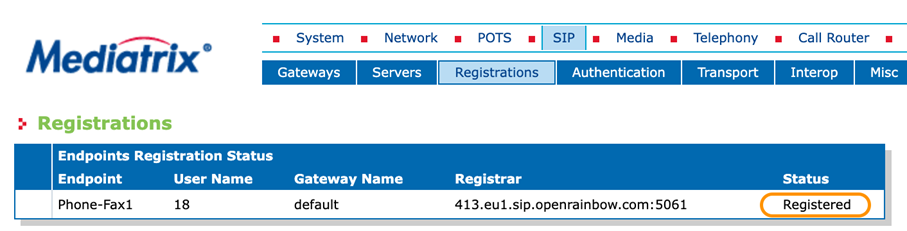

SIP/Registrations
-
Endpoints Registration : Phone-Fax1
-
User Name : Set Extension e.g. „18“
-
Friendly Name : Set Name e.g. „18“
-
Register : „Enable“

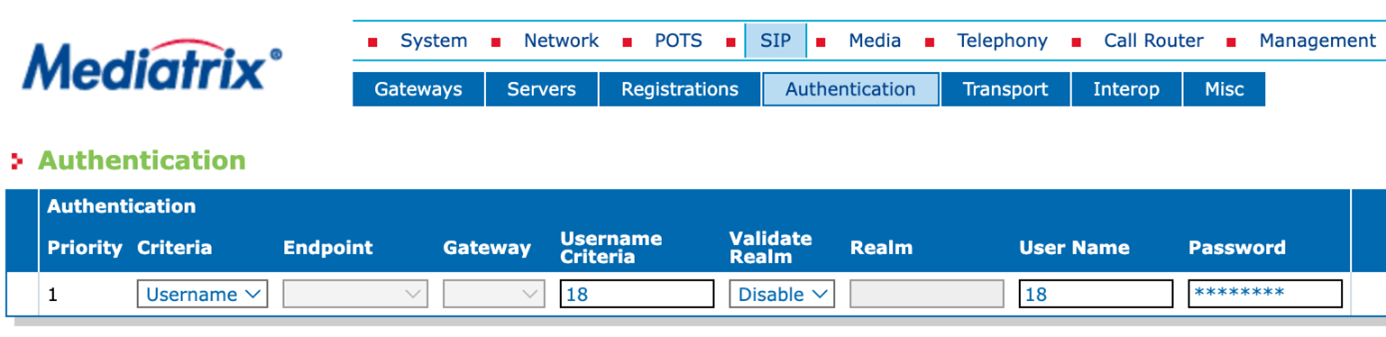

SIP/Authentication
- Authentication : Edit Prioirity 1
- Criteria : „Username“
- Username Criteria : extension e.g. „18“
- Validate Realm : „Disable“
- User Name : e.g. „18“
- Password : Password from RB-Hub Admin (please consult your Businesspartner) for this extension.
