Add customized features to Rainbow application (custo-manifest)

Related to

Yves MAZURIER
  • Updated

This articles allows to add customized features to Rainbow applications using a set of actions configurable from a custo-manifest.json file.

The available actions are:

  • Actions automatically triggered following events:
    • on-incoming-pbx-call-actions: to execute an action when an incoming call occurs
    • on-answering-incoming-pbx-call-actions: to execute an action when an incoming call is answered
    • on-releasing-incoming-pbx-call-actions: to execute an action when an incoming call is ended

On incoming calls, actions can launch a script, application or web page with information on the incoming call.

  • Actions triggered via button use:
    • on-incoming-pbx-call-button-actions: to execute an action by clicking a button added in the incoming call pop-up window
    • on-call-log-list-actions: to execute an action by clicking a button inserted in each item of call log
    • on-contact-list-actions: to execute an action by clicking a button inserted in each item of contacts
    • on-contact-detail-actions: to execute an action by clicking a button inserted in the contact detailed area
    • on-communication-card-actions: to execute an action by clicking a menu inserted in the call manager bar.

By clicking buttons, actions can open pop-up windows with possibility to join contacts or services by e-mail.

  • Actions with automatic information display:
    • on-incoming-pbx-call-display-actions: to insert information in the incoming call pop-up
    • on-contact-card-display-actions: to insert information in the contact detailed area

These actions are configured from the custo-manifest.json file available from the Rainbow application.

Configuration consists in:

  1. Exporting the custo-manifest.json file on computer
  2. Editing and completing the custo-manifest.json file
  3. Importing the custo-manifest.json on Rainbow application

Configuration only applies to Rainbow applications running on computer only.

Configuration must be performed for each Rainbow application.

Prerequisite

  • The custo-manifest.json file configuration requires at least a Business, Enterprise or Attendant license.

Custo-manifest file overview

The custo-manifest file consists of two parts:

  • The first part lists all the available actions, and provides for each action, a template with the main parameters to complete.

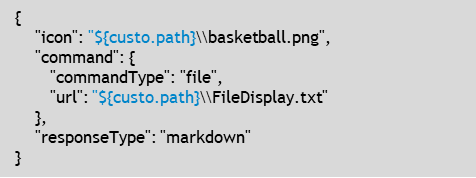

    Example:
  • The second part provides a help guide to be read for configuration.

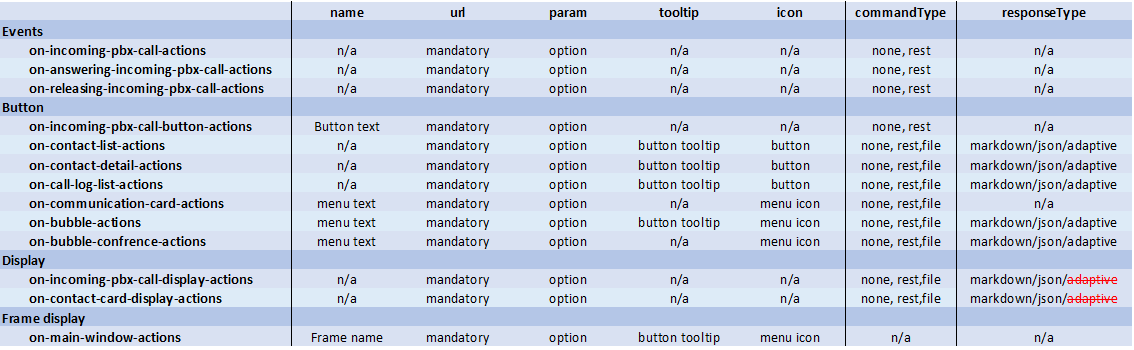

An action is defined by the following parameters:

  • "name": is a text used to identify action or the label of button for actions using button
  • For actions using button:
    • "icon": is the access path to the button icon
    • "tooltip": is the access path to the tooltip displayed when the mouse is moved over the button
  • "command": defines the action to be executed
  • "url": is the path or URL to access local application, web page or REST API
    Note: The backslash must be double in access path to local application (e.g. C:\\MicroCRM\\MicroCRM.exe).
  • "params": is a string with variables ${xx} which will be replaced by their value in action execution
  • "commandType":  specifies action type:
    • "none": launches a local application or a web page (if url starts with 'http' or 'https')
    • "rest": executes a REST API call
    • "file": fetches the file content to fetch (mainly for debugger tuning)
  • "responseType: defines the type of content returned by action: "markdown", "json" or "adaptiveCard".

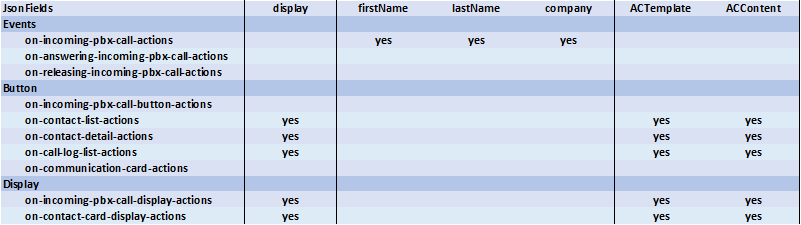

    If set to "json", then:

    • "displayJsonField": defines the field which value is the content to be displayed
    • "firstNameJsonField": defines the field which value must substitute to the caller first name
    • "lastNameJsonField": defines the field which value must substitute to the caller last name
    • "companyJsonField": defines the field which value must substitute to the caller's company name

    If set to "adaptiveCard", then:

    • "adaptiveCardTemplateJsonField": defines the template of the adaptive card to be displayed
    • "adaptiveCardContentJsonField": defines the content of the adaptive card to be displayed

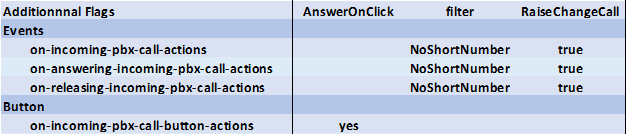

Additional parameters are available:

  • "AnswerOnClick": when set to true, executes the action and answers the incoming call at the same time (for action on-incoming-pbx-call-button-actions only)
  • "filter": if set to "NoShortNumber", it will not trigger event if caller number is a short number
  • "RaiseChangeCall": allows to configure the behavior when receiving a transferred call:
    • false: only direct calls to the user will trigger the event
    • true: the event is triggered for direct calls to the user and also for calls that have been transferred to this user
    • only: only transferred calls to the user trigger the event

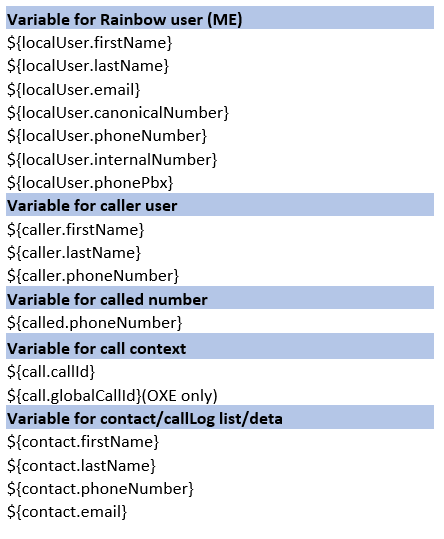

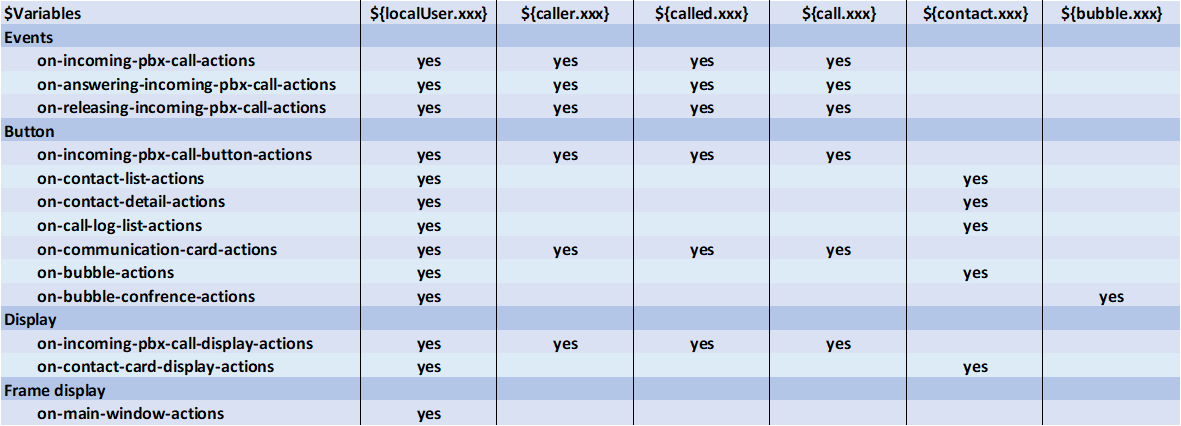

The action template can include variables ${xx} configured in the "url", "params" and "bodyParameters" (for REST API) parameters.  They are replaced by their value when the action is executed.

Note: For more details on the parameters and variables used in action templates, go to the help guide at the end of custo-manifest file.

Exporting the custo-manifest file on computer

  1. From the Rainbow administration interface, click on the avatar in the left panel, then Settings menu.
  2. In the left-hand menu, select Telephony.
    The Settings - Telephony configuration window opens.
  3. Expand the window up to the CUSTOMIZATION section.
  4. Click on Export file and use the browser to export the custo-manifest file on the computer.
  5. Click on Close to exit the telephony settings window.

Configuring the custo-manifest file locally

  1. Open the custo-manifest file using a text editor.
  2. Configure the parameters of the actions to be used.
    Warning: do not delete the space between the double quotation marks for the unused parameters ("name": " ", "url": " ", "params": " "), otherwise the imported file will not be taken into account.
  3. Remove the parameters of all the unused actions.
  4. Save the custo-manifest file.
Note: A specific configuration is required when a local application or web page is launched and variables must be transmitted. Refer to the application documentation for the correct syntax for the transmission of variables.

Importing the custo-manifest file on Rainbow application

  1. From the Rainbow administration interface, click on the avatar in the left panel, then Settings menu.
  2. In the left-hand menu, select Telephony.
    The Settings - Telephony configuration window opens.
  3. Expand the window up to the CUSTOMIZATION section.
  4. Click on Import file and use the browser to select and import the custo-manifest file on the Rainbow application.
  5. Click on Close to exit the telephony settings window.

Examples of configuration

Execute an application or script with parameters

Example 1:

The action on-incoming-pbx-call-actions executes an application (e.g. MicroCrm) with a parameter from 'params' (no return).

"version": "2",
"extension-points": {
"on-incoming-pbx-call-actions": [
 {
  "name": "Exec CRM",
  "command": {
  "url": "C:\\MyApp\\CustoApp\\MicroCRM.exe",
  "params": "-number ${caller.phoneNumber}"
   }
  }
 ],

Example 2:

The action on-incoming-pbx-call-actions executes a script (*.bat) with parameters from 'params' (no return).

"version": "2",
"extension-points": {
"on-incoming-pbx-call-actions": [
 {
  "name": "BatScript",
  "command": {
  "url": "C:\\MyApp\\MyApp.bat",
  "params": "IN-COMING canNr:${localUser.canonicalNumber} userIntNr:$"{localUser.internalNumber} caller[Nr:${calle.phoneNumber} FN:${caller.firstName} LN:${caller.lastName} .... CorData:[${call.correlatorData Hex:${call.hexCorrelatorData]"
   }
  }
 ],

Open a web page with parameters

Example 1:

The action on-incoming-pbx-call-actions opens a web page with parameters from 'params' (no return).

"version": "2",
"extension-points": {
"on-incoming-pbx-call-actions": [
 {
  "name": "Yellow pages",
  "command": {
  "url": "https://www.pagesjaunes.fr/annuaireinverse/recherche",
  "params": "quoiqui=${caller.phoneNumber}&proximite=0"
  }
 }
],

Example 2:

The action on-incoming-pbx-call-actions opens a web page with parameters directly in URL (no return).

"version": "2",
"extension-points": {
"on-incoming-pbx-call-actions": [
 {
  "name": "Contact popup",
  "command": {
  "url": "http://localhost:3000/contactShow?phone=${caller.phoneNumber}",
  "params": " "
  }
 }
],

Execute a REST API call with parameters

Example 1:

When incoming call is released, the action on-releasing-incoming-pbx-call-actions creates an END call log in REST using GET method and parameters from "params" (no return).

"version": "2",
"extension-points": {
"on-releasing-incoming-pbx-call-actions": [
 {
  "name": "GetRestApi",
  "command": {
  "commandType": "rest",
  "method": "GET",
  "url": "http://localhost:3000/IncidentManager/CreateCallLog",
  "params": "byEmail=${localUser.email}&CustomerContact=${caller.phonenumber}"
  }
 }
],

Example 2:

When incoming call is released, the action on-releasing-incoming-pbx-call-actions creates  an END call log in REST using POST method and parameters from "bodyParameters" (no return).

"version": "2",
"extension-points": {
"on-releasing-incoming-pbx-call-actions": [
 {
 "name": "PostRestApi",
 "command": {
 "commandType": "rest",
 "method": "POST",
 "url": "http://localhost:3000/IncidentManager/EndCallLog",
 "params": " "
 },
 "bodyParameters": {
 "caller": "${contact.phoneNumber}",
 "user": "${localUser.email}",
 }
],
